COMP 3400 Lecture 7: Deadlock

[ previous | schedule | next ]

additional resource: Modern Operating Systems (2nd Ed), Tanenbaum, Prentice Hall, 2001.

Note: All the problems, solutions, and algorithms in this lecture apply equally to both processes and threads.

What is deadlock?

Follow the time sequence in this scenario:

1. System resources Q and R can only be used by one process at a time
2. Process A requests and gets resource Q and holds it
3. Process B requests and gets resource R and holds it
4. Process A requests resource R, and blocks because B is holding it
5. Process B requests resource Q, and blocks because A is holding it
6. Both A and B are deadlocked. Each is blocked for a resource that the other holds.

Tanenbaum's definition is a good one: A set of processes is deadlocked if each process in the set is waiting for an event that only another process in the set can cause.

What conditions cause deadlock?

1. mutual exclusion. One or more of the resources must require mutually exclusive access (e.g. printer). A requesting process blocks if resource is busy.
2. hold-and-wait. One of more of the processes must hold at least one resource while blocked for another.
3. non-preemptive. Process releases resource only voluntarily.
4. circular wait. Must have a circular chain of processes, each of which is waiting for resource held by the next chain member.

How do OSs approach deadlocks?

This approach is justifiable, based on risk analysis. If the costs outweigh the benefits, there is no reason to do it. We'll see shortly the costs are high. For general purpose OSs, the benefits are low. Responsibility shifts to those who implement software development tools (e.g. Oracle) as well as the programmers who use them.

If OS designers decide to tackle deadlocks, the major approaches are:

• prevention. Deny one or more of the four necessary conditions.
• avoidance. Allow the conditions but dynamically analyze the situation to detect and deny requests that could lead to deadlock.
• detection and recovery. Allow deadlocks to occur, then detect and recover from them.

How can deadlocks be detected?

The last two approaches both require the OS to "know" what a deadlock "looks like." Deadlocks can be reasonably modeled using a system-wide Resource Allocation Graph (RAG).

Note: I'll restrict the system to have only nonsharable resources of which there is a single instance (e.g. a system with one printer and one tape drive). It will illustrate the concepts with a minimum of details. There are algorithms that do not require these restrictions.

A resource allocation actually includes both allocations and requests. A graph has the following components:

1. Processes P_i, drawn as circles
.
2. Resources R_i, drawn as squares
.
3. Requests, drawn as unlabeled directed edge from a process to a resource.
4. Allocations, drawn as unlabeled directed edge from a resource to a process.

"Draw" a graph representing the global system state, where P_i are all system processes and R_i are all the system resource. "Draw" the current allocations and requests.

The system contains a deadlock if the graph contains any cycles. All processes in a cycle are said to be deadlocked. The figure above shows two processes and two resources, but the cycle could involve many more than two processes.

The graph is obviously not really drawn, but appropriate graph data structures and algorithms can easily be developed to detect deadlocks or potential deadlocks.

Deadlock Prevention

As state above, this requires denying one or more of the four conditions.

• denying mutual exclusion. Cannot be done for intrinsically nonsharable devices (e.g. printers). So this is not an easy avenue toward prevention.
• denying hold-and-wait. Two approaches: either require a process to release all held resources before the next request, or require it to request all resources before execution begins. The former restricts process structure; the latter reduces system performance.
• denying non-preemption. Allow OS to preemptively release resources held by a process when it requests a non-available resource. The process cannot run again until it is able to acquire both the preemptively-released resources and the one it was requesting. This is not practical for all resource types (e.g. printers).
• denying circular wait. The classic approach is to assign a total ordering on all the resources, then allow a process to request resources only in increasing order. Or upon request of a resource, force it to release higher-numbered resources.

Deadlock Avoidance

The strategy here is for the OS to deny a resource request that could lead to deadlock. There are a number of strategies and algorithms for doing this. They focus on keeping the system in a safe state: a state in there is at least one deadlock-free scheduling sequence to completion even if all processes request all their resources at once.

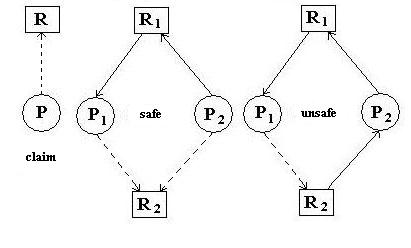

One is to maintain a RAG supplemented with an additional edge type: the claim edge. A claim edge represents a future process request for a resource. If these are added to the RAG, then a request can be evaluated for its safeness: if allocation would result in a cycle, it should not be granted. Example below for P₂ claim on R₂ and what would occur were it allocated.

Dijkstra's Banker's algorithm could be employed. A banker (the OS) has several customers (processes) which ask for loans (resources) from their lines of credit (maximum resources required for completion). Once a customer has depleted its line of credit, it pays off the entire loan (releases all resources). The combined lines of credit are greater than the amount of money on hand in the bank (available resources). The banker can grant a loan request only if the remaining money on hand is enough to cover all the possible future loan requests in some sequence. This is illustrated below in an example for one resource type of which multiple units are available.

This diagram shows three system snapshots:

• left: System starts with 8 units of a resource and three new processes A, B, C.
• center: system is in a safe state: if C requests its remaining 4 units then releases all 6, then either A or B can request its remaining 5 units then release all and the other can request its remaining 5 and get them all.
• right: system is in an unsafe state: what has happened instead is that B has requested and been granted 1 unit. If any of the processes then makes its maximum request the system is deadlocked.

Deadlock Detection

Pretty much covered above: Build/maintain a RAG and look for cycles.

Deadlock Recovery

Recovery methods are unsavory and fall into two categories:

• terminate as many deadlocked processes as are necessary to break the deadlock
• preemptively release resources from processes until the deadlock is resolved.

The major policy design is which process(es) to terminate or preempt. This decision is based on process properties (which are stored in PCB and OS data structures).

One possibility is rollback. "Undo" the actions of a process until it reaches pre-deadlock state. Then resume it later (after potential for deadlock is past) from that state.
