For this capstone lab project, you will develop a GUI interface for the MMGame class you developed in the previous project. I will provide a working MMGame class for you to use and a prototype GUI. The GUI will provide game management and also display a history of guesses and responses. All user interaction will be through the mouse and all guesses and responses will use colors instead of digits. When you run the program, the GUI should look something like this:

As you can see from this figure, the GUI has four basic sections. They are, from top to bottom,

1. Frame Title: This is the title bar area across the top. It is easily configured using JFrame methods and you have several examples both from handouts and the textbook.
2. Menu Bar: The menu bar contains two menus. We did not cover menus in lecture but the provided code includes a menu bar with one menu that has one item. So you can see how they are constructed.
3. Game History: This is a numbered list of previous moves and responses. It is configured using nested panels with the outermost panel placed into a scrolling pane. See JScrollPane on textbook page 569. The figure shows its initial configuration so each move is shown as a gray box with no response.
4. Guess Input: This is the row of four boxes with the button beneath. The four boxes are actually buttons that have no text. Each time one is clicked on, its background color changes. This is how the user specifies the sequence of colors for guessing. I have initialized each to the default color white.

The next figures show a game in progress, just before the user presses "Make Guess" for the fourth guess, and the menu items. To see the real colors, view this document on the web rather than the printout.

How to play the game as shown in these figures

• Run the program or start a new game by selecting "New" from the "Game" menu.
• Click on the four boxes just above the "Make Guess" button to form your guess. They are initialized to white, which is one of the colors. Each time you click, the next color in the round-robin list of colors will fill the background. There is no way to make an invalid guess because only the allowed number of boxes and colors are shown!
• Click until all four boxes contain your guess then click the "make guess" button.
• Your guess will be evaluated, then it and the response will be displayed in the history section. The input boxes also revert to white.
• The response resembles the board version of the game. Each black "o" represents a "complete" and each white "o" represents a "partial".
• You enter guesses until either you guess the solution or run out of guesses. In either case a message box will appear with the appropriate message and the "make guess" button is disabled.

Getting Started

1. MasterMind.java, which contains the main()method and implements the GUI. This is the class in which you will do all your programming. Skeletal solution provided.
2. MMGame.class, the class that implements the Mastermind game evaluation. I have added another constructor described in the Saving and Opening In-Progress Games section below. Documentation and bytecode solution provided.
3. MasterMain.java and Master.class, which comprise a substantially complete solution. Run MasterMain.java to see how the application should work. Provided.

In the I:\COMP\1600\20142-COMP-1600-01\Common folder, you will find a folder called Project5 containing these files. Copy this into your workspace. If you cannot access the I: drive, then download the project zip file (right-click) and unzip.

Development Details

• Work on one component at a time! I will provide guidance below.
• Experiment! The compiler responds within seconds, not hours, so try many variations.
• Have fun! You are creating a masterpiece and developing valuable skills.

1. Start with the basic frame - No Points

1. The basic frame is provided. Feel free to resize as needed later on.
2. You should be able to compile and run MasterMind.java as provided.

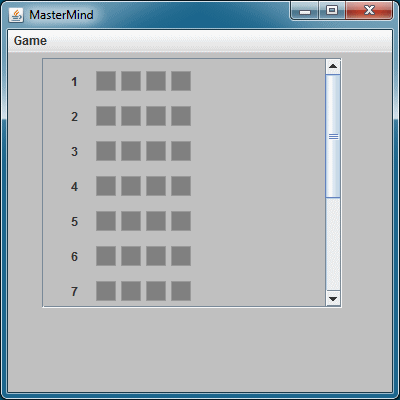

3. It will display a titled frame with grayed-out History pane.
4. I gave the content pane a FlowLayout but you are free to use a different layout manager.
5. The frame also has a Game menu with the Exit menu item implemented. Try it!

2. Create additional menus and menu items - 5 Points

1. Define all menu-related objects as local variables in the menuSetup() method.
2. The menu bar, Game menu and Exit menu item are provided and fully operational.
3. Add the additional menu and menu items as illustrated in the diagrams.
4. The horizontal separators within a menu are created by calling the addSeparator() method with the menu (e.g. gameMenu.addSeparator();).

3. Define "stub" action listeners for menu items - 3 Points

1. A stub action listener is one whose actionPerformed() method only prints a message containing the menu item name to System.out.
2. Create a private inner class MenuItemStubListener that implements ActionListener, as a default event handler for remaining menu items.
3. Inside its actionPerformed() method, call e.getActionCommand(), where e is the parameter, to retrieve a String containing the menu item text for the selected menu item. Then display this in a message using JOptionPane.showMessageDialog(). Here's an example, where e.getActionCommand() returns "Close":
4. Back in menuSetup(), create a MenuItemStubListener object and add it to each of the menu items. The same action listener object can be added to all the menu items.

4. GUI objects for obtaining user guess - 24 Points (allocated as indicated)

1. Declare two instance variables:
   • private JButton[] inputButtons;
     for the array of buttons that will be clicked to specify the guess, and
   • private JButton makeGuess;
     for the "Make Guess" button. Remember: instance variables are declared outside any method, in this case they are listed at the top of the class.
2. Define two action listener classes:
   • MakeGuessListener, for the "Make Guess" button.
   • InputButtonListener, for the array of input buttons.
   • Write "stub" actionPerformed() methods for both of those. They should respond in some way -- a JOptionPane message or System.out.println() message.

4.2 (6 Points) The next 6 steps describe code in the provided private method, private JPanel inputSetup().

1. Note that I have declared and created a JPanel object called inputButtonPanel to hold all the buttons.
2. Create the inputButtons array to have NUM_PEGS JButton elements. NUM_PEGS is provided and is currently set to 4.
3. Compose a loop to create the NUM_PEGS JButton objects. In each iteration of this loop, a JButton object will be created and assigned to an element of the inputButtons array. The button will have no label. Add an InputButtonListener object to the button (all buttons can share the same listener object, so create it above the loop). Set its background to colors[DEFAULT_COLORS_INDEX]. The array colors is provided.
4. Create and assign the "Make Guess" JButton. Add a MakeGuessListener to it.
5. I used the JPanel default layout manager FlowLayout.
   • use the setPreferredSize() method to specify the dimensions of inputButtonPanel and all the buttons it contains.
   • setPreferredSize() requires a Dimension parameter. A Dimension object simply contains int width and height. For example, if you had a button named press you could set its size to 100 x 25 pixels using Dimension buttonDim = new Dimension(100,25); press.setPreferredSize(buttonDim);
6. Add all the buttons to inputButtonPanel.

4.3 (6 Points) This is a good time to fill in the actionPerformed() for the InputButtonListener class. Here's what it needs to do:

1. Get a reference to the button that was clicked. actionPerformed() has an ActionEvent parameter and you can use its getSource() to do this. See textbook page 248. Note: you will need to use type-casting to assign the return value to a JButton variable.
2. Get the button's background color using getBackground().
3. Determine which index in the colors array contains this background color. I strongly recommend you write a private method that has one parameter to receive the background color, and returns the array index for that color. Its algorithm will require a small loop to find the match. This method will also be needed below.
4. Change the button's background color, using setBackground(), to the next color in the array. Don't forget to wrap around when you get to array index NUM_COLORS! The '%' operator is good for this.

4.4 (8 Points) Finally, write actionPerformed() for the MakeGuessListener class. Take it in phases:

1. Start by transforming the state of the input buttons into a suitable string for the MMGame's guess() method. Do that by composing a loop to traverse the inputButtons array. In each loop iteration:
   • get the button's background color and determine its array index in the colors array. Hey, didn't you just do the same thing above? If you defined it as a private method as I recommended, you can just call that method here.
   • Convert this array index to a string and concatenate it to the end of your guess string.
2. After completing the loop, you should have a string containing the guess in a format that the MMGame class understands. Now you can interact with MMGame and produce some test output. The provided code includes an MMGame object called game. You can use game.guess() to register the guess. Then for testing, you can use System.out.println() to display the values of game.getSolution(), game.numComplete(), and game.numPartial(). Test everything thoroughly until you are convinced it works correctly.
3. Add the logic and interaction for finishing a game. Call game.isGameOver() and if it returns true, then show a congratulatory JOptionPane.showMessageDialog() to the user! If game.isGameOver() returns false and game.getNumGuesses() returns MAX_GUESSES then show a conciliatory JOptionPane.showMessageDialog() to the user. In either of these situations, disable the "Make Guess" button using its setEnabled() method with argument false.
4. Reset the input button colors to all white after each move is processed.

5. GUI objects for displaying response and game history - No Points

I defined a private JPanel historySetup() method that returns a JPanel containing all the rows. Back in the constructor, I called historySetup() then created a JScrollPane using the returned JPanel as its constructor argument. This is what gave you the ability to scroll through the history rather than display it entirely.

So there is a JPanel to contain the entire grid. Within this JPanel, I added a separate JPanel for each row. And within each row's JPanel, I added:

• a JLabel containing the row number
• a set of NUM_PEGS disabled JButtons representing the guess
• a set of NUM_PEGS JLabels representing the response

Each row number is simply a JLabel.

For the guess history, I chose to use disabled JButtons having the same size as the input buttons. This contributes to a simple and consistent look. They are initially drawn using a gray background then as each guess is registered the colors in the appropriate row are changed to match those of the input buttons.

For the response history, I chose to use JLabels. Each JLabel has the value "o". I then manipulate its visibility and meaning by setting the foreground color (e.g. the color used to render the text). To make it invisible at the start of a new game, I set its foreground color the same as its background color. To display a "complete" match, I set its foreground color to black. To display a "partial" match, I set its foreground color to white.

Again, I used the default FlowLayout manager for all the JPanels, in conjunction with setPreferredSize() to make everything line up pretty.

Another issue is data structures. Since the guess JButtons and the response JLabels will have their colors manipulated by action listeners:

• I declared the guess JButtons as a 2-D array instance variable, e.g. private JButton[][] history;
• I declared the response JLabels as a 2-D array instance variable, e.g. private JLabel[][] response;
• The first index represents guess number (row) and second represents position (column).
• The arrays and objects were created as needed in historySetup()

6. Moving a Guess into the History - 5 points

For each button in the selected row of history, set the background color to the background color of the corresponding guess input button. For labels in the selected row of response, set the foreground color to Color.black for each of game.numComplete() and set it to Color.white for each of game.numPartial(). In other words, if the number complete is 1 and number partial is 2, set one of them to black, two to white, and leave the fourth one alone.

7. Reset the History when Game Ends - 3 Points

8. Minor menu items - Extra Credit, Up to 5 Points

If you are ready for something not so taxing, implement a few menu item action listeners. The easy ones are:

• New : should reset the history to its initial visual state (see item 7), and create a new MMGame object.
• Close : For now, disable the "Make Guess" button and reset the history and input buttons to initial visual state.
• View Solution : Call game.getSolution() to get the solution then display it. If you use JOptionPane.showMessageDialog(), you might have a tough time displaying the solution visually by color rather than text names.
• MasterMind Rules : Use JOptionPane.showMessageDialog() to describe how to play the game. This will require multiple lines both in your program and in the resulting message dialog. A string cannot be continued onto multiple lines of your program, so patch together your string using the '+' string concatenation operator at the end of each line. To get multiple lines in the message dialog, embed an '\n' (newline) character in your string.
• About... : Use JOptionPane.showMessageDialog() to relay a brief message with your name and a 2014 copyright. Also state that Mastermind is a registered trademark of Pressman Toy Corporation.

9. Saving and Opening in-progress games -- Extra Credit, Up To 10 Points

Dialogs for selecting file names

Implement the "Open" menu option by creating a JFileChooser object, invoking its showOpenDialog() method then accessing the filename (if the action was not canceled) using its getSelectedFile() method.

Implement the "Save As" menu option similarly except use showSaveDialog() instead of showOpenDialog.

Implement the "Save" menu option by first checking to see if there is a "current" file name (a name under which it has already been "Open"-ed, or "Save As"-ed since the last New) -- use a String variable for this. If there is, use it. If not, treat this as a "Save As" as described above. This is good incentive to use the same action listener for both "Save" and "Save As".

Optional feature: If you have time, consider the following. For "New" and "Open", maintain and test a variable that indicates whether there is a current game that has not been saved since the last move. If there is, give the user an opportunity to save it before doing the New or Open.

Reading and writing game states

Here are the values that need to be stored in the file. You may add to this list if necessary for your particular implementation.

1. Number of positions that need to be guessed *
2. Number of different colors that each may take *
3. Maximum number of guesses permitted *
4. The solution
5. Number of guesses made so far
6. The guess and response for each guess

I suggest you store the guess as an integer (i.e. the index of the colors array) sequence.

Changes needed to MMGame class

The ability to open and resume a saved game means the GUI client has to have the ability to set both the solution and the number of guesses made so far, in the MMGame object. I have added another constructor to the MMGame class to permit this.

    public MMGame(int n, int k, String solution, int guesses)

• n is length of solution,
• k is number of digit values,
• solution is the specified solution, and
• guesses is the number of guesses made so far.

The Partner Option

You have the option of working with a partner to develop one solution. If you do this, you will follow the "pairs programming" technique. The first decision will be whose login account to use since you can only use one. Once that is decided, then pairs programming is pretty straightforward: both of you work at one PC (you can use a second one for Googling and API lookups). The "driver" is at the keyboard typing in code and testing. The "navigator" is at the side, directing the driver, giving advice, and watching for keystroke errors. After 45 minutes you must switch roles.

To Turn In

When finished, copy MasterMind.java into your I:\COMP\1600\20142-COMP-1600-01\DropBox folder. If you are working with a partner, submit to only one partner's folder. Be sure the comments in the course code file has both names.

Point Allocations
